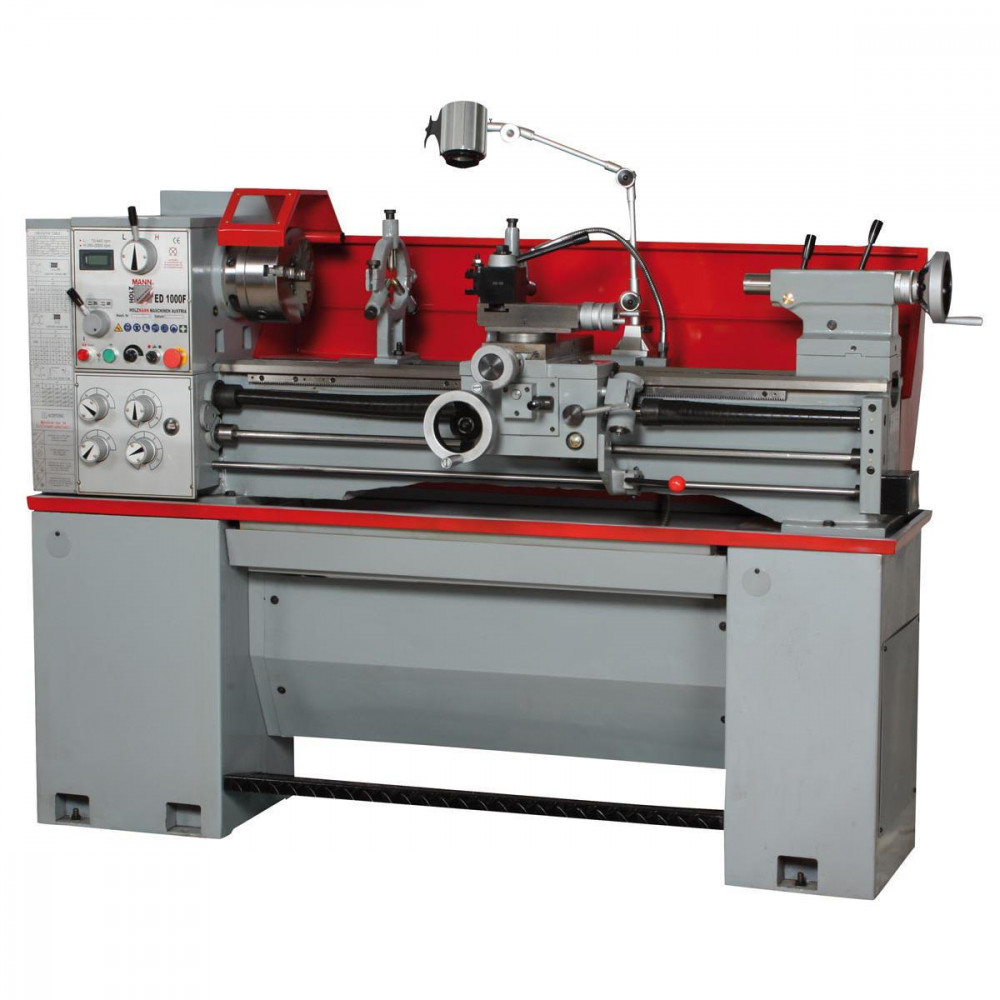

• State of the art leadscrew and feed rod turning lathe excelling with especially long lasting value over time and delighting versatility
• ideal for use in sectors requiring versatility like maintenance and fabrication shops, tool rooms or for training purposes in schools
• exceptionally wide spindle bore (Ø 52mm) for processing large shaft diameters
• electromagnetic foot brake ensures maximal working safety and cuts down nonproductive time dramatically
• induction-hardened and precision ground prismatic bed way guides made of stabilized cast iron, assuring max. accuracy for a lifetime
• removable bridge enables the machining of workpieces with diameters up to 476mm
• Precision cut gears and vibration inhibiting cast iron machine bed ensure high turning accuracy
• Gears and spindles are hardened, ground and running in an oil bath
• Dynamically balanced main spindle mounted in precision bearings, high spindle centricity (< 0,009mm)
• variable speed setting due to frequency converter, speed can be read off conveniently from the digital speed display
• Camlock D1-5 DIN 55029 spindle nose
• adjustable (+/- 5mm) tailstock for taper turning
• All guides conveniently adjustable via V-ledges

included in delivery: 3-jaw chuck Ø 200mm with exchange jaws, 4-jaw chuck Ø 200mm, face plate Ø 250mm, 2x dead centers MT4, morse taper sleeve MT 6/4, steady rest, follow rest, halogen work lamp, splash guard, coolant device, stand with spindle brake, threading, change gears, tools
