  • Holzmann
  • BF500_400V Holzmann metalo frezavimo staklės

BF500_400V

Nauja prekė

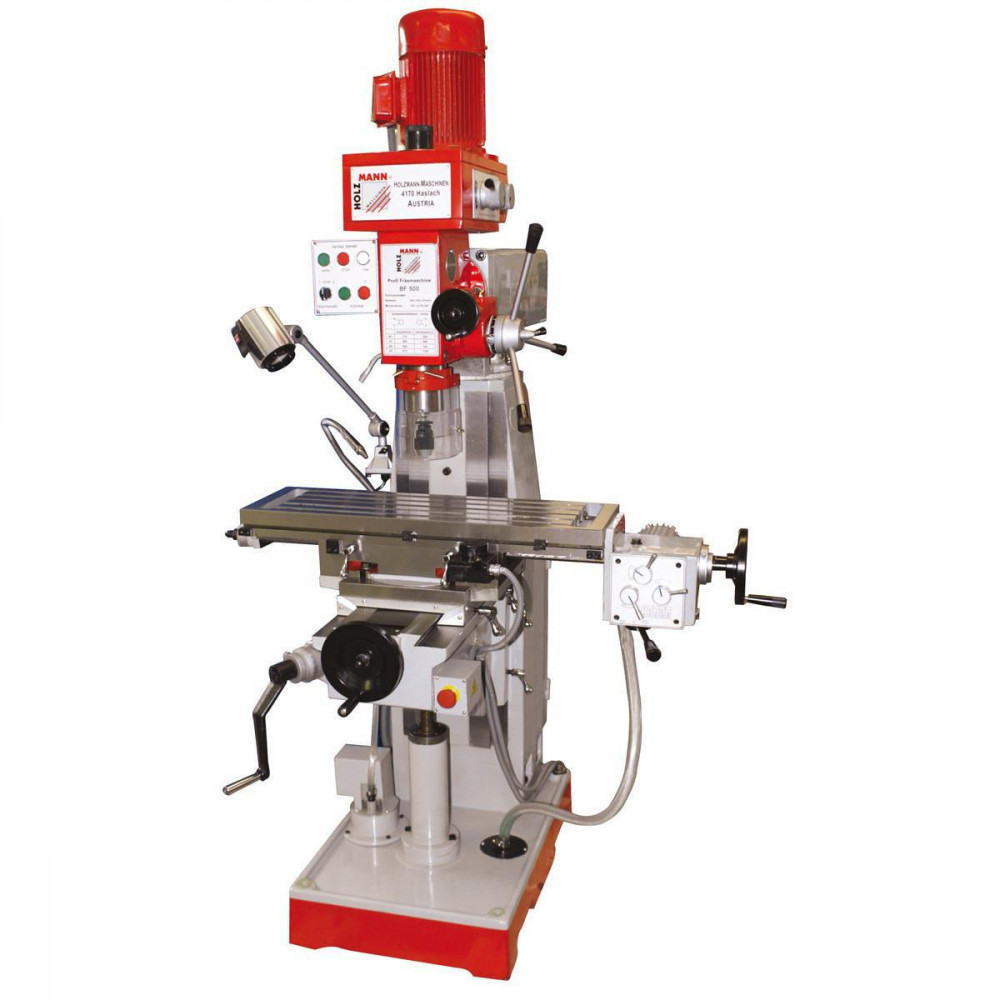

BF500_400V Holzmann metalo frezavimo staklės

10 162,79€

Pristatymo laikas: 5-10 d.d. Gamintojo garantija: 2 metai

Pridėti prie pageidavimų

  • heavy and vibration absorbing cast iron machine

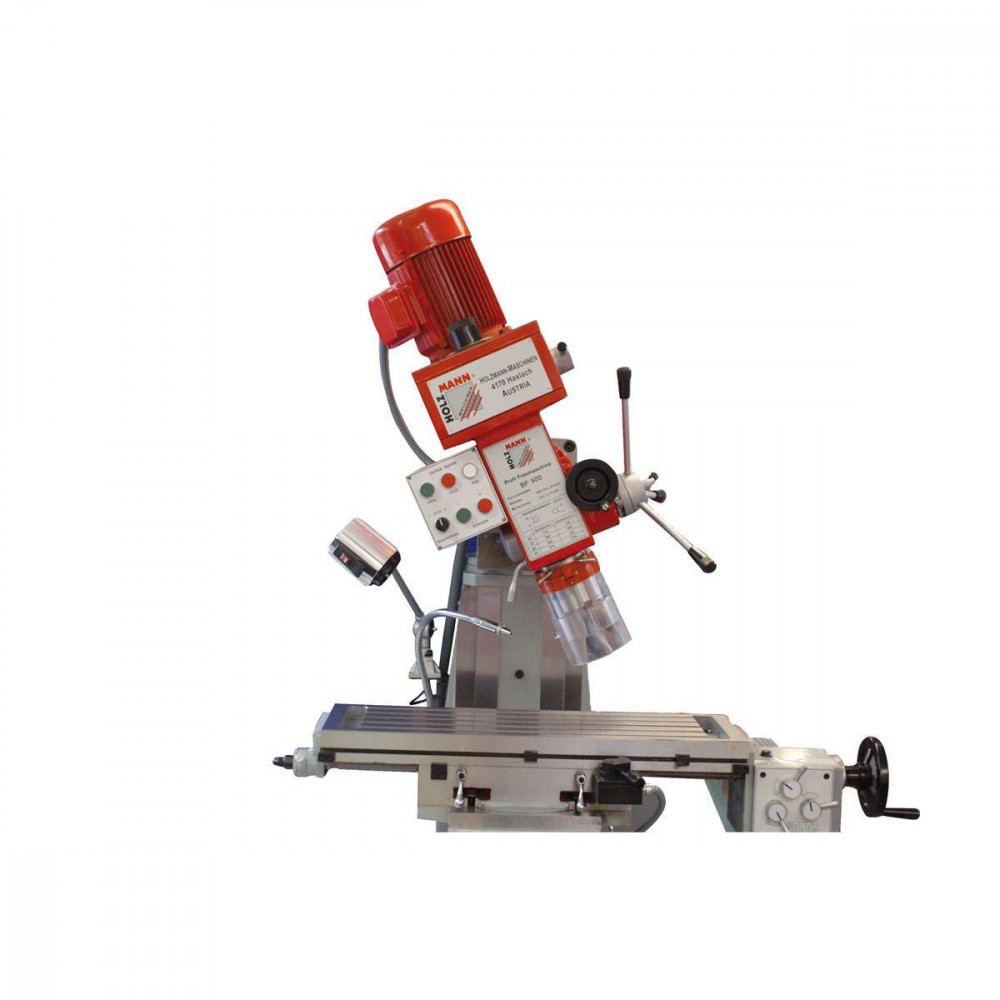

  • solid and pivotable (+90° -90°) vertical gear driven milling head
  • Oil bath gear with ground and hardened gear wheels
  • CW-CCW run as standard
  • quill downfeed via three spoke lever and precision wheel
  • with depth scale
  • heavy and large cross table with 14mm T-nuts to fix e.g. a vice
  • automatic gear driven feeding of X-axis
  • automatic and adjustable limit stops of the X-axis.
  • swallowtail guides of the table adjustable via V-ledges
  • max. tapping size M16
  • cooling system and halogen lamp included in delivery

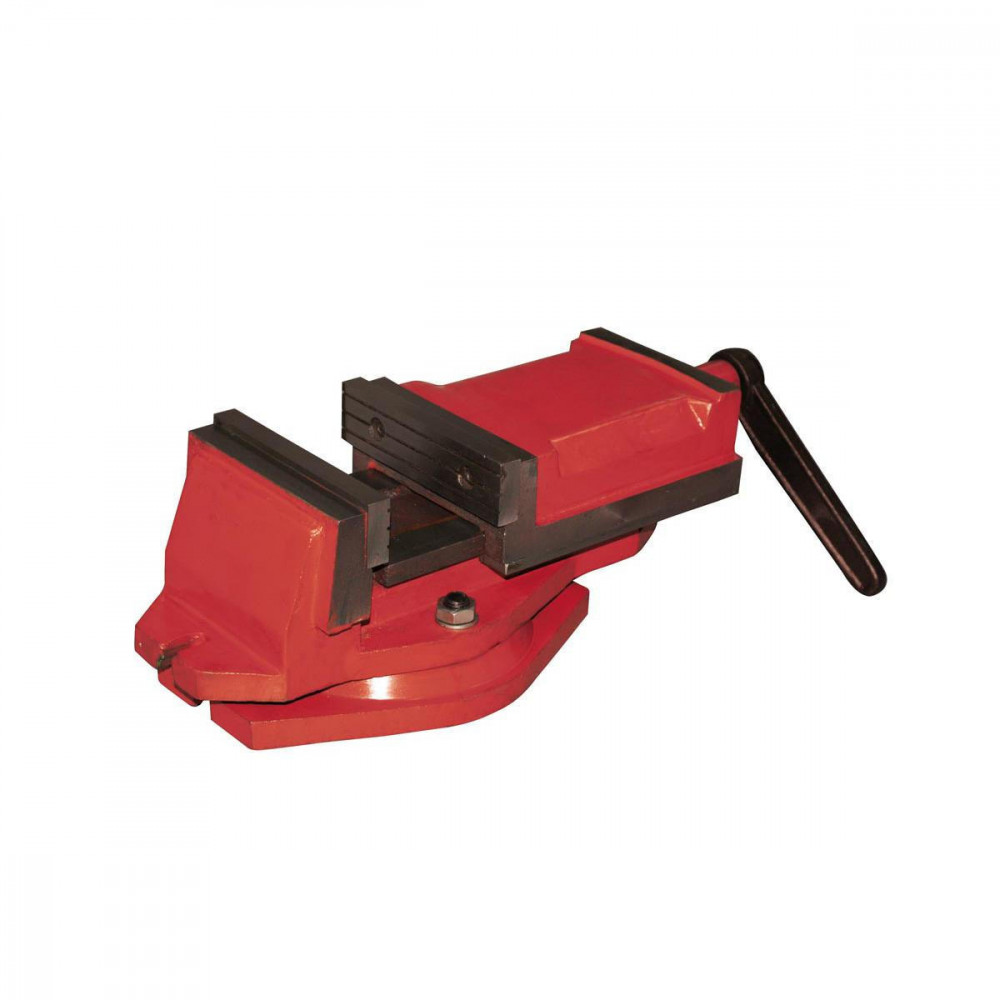

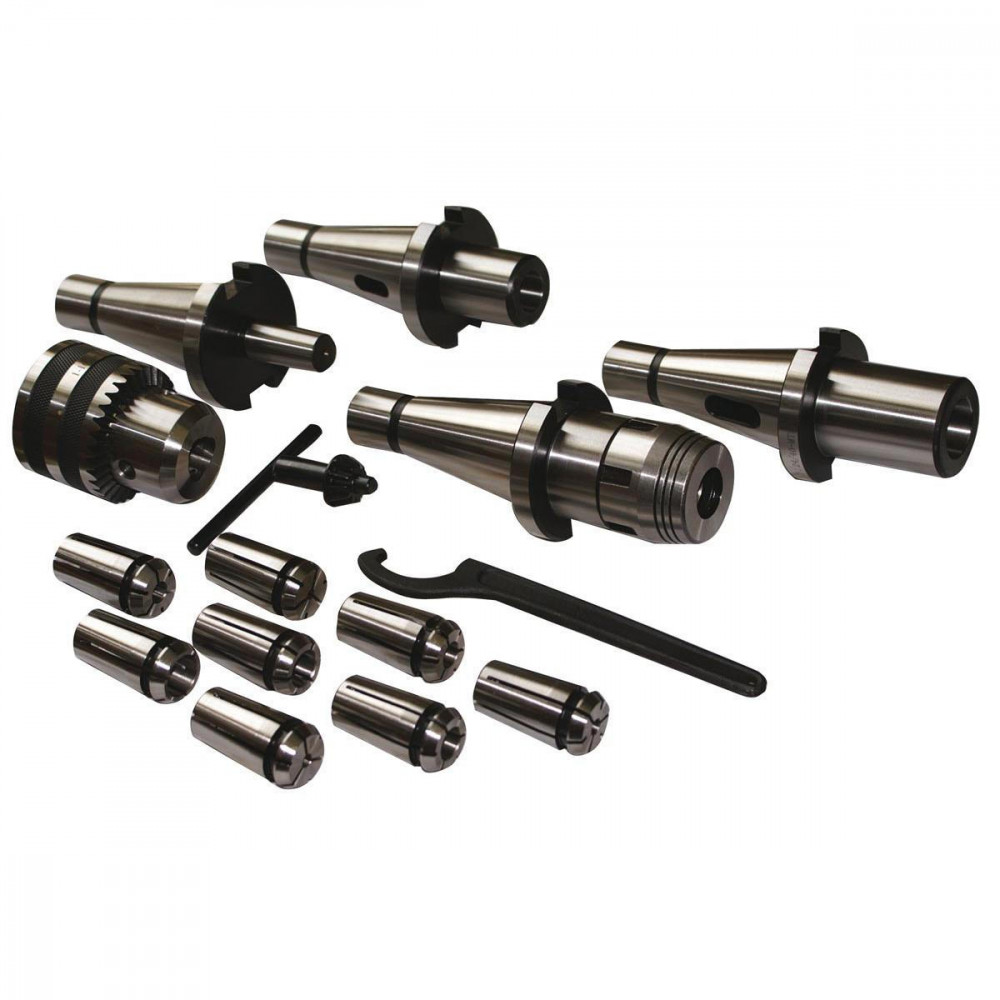

included in delivery: X-axis feed, cooling system, chuck set 8pcs (4,5,6,8,10,14,12,16mm), chuck 1-16mm (B18), 1x MT2 1xMT3 1xB18 adapter, professional vice jaw width 160mm, halogen lamp

Aukštis 2.220
Svoris 800
Svoris (bendras) 980
Įtampa 400V
Ilgis 1.120
Plotis 1.320
Stalo matmenys 1000x240
Modelis BF500_400V
Pavadinimas (anglų k.) heavy duty milling machine
EAN numeris 9120039905419
Variklio galia s1 (W) 800-1500
Variklio galia s6 (W) 1400-2400
Pasiekiamumas (mm) 170-640
