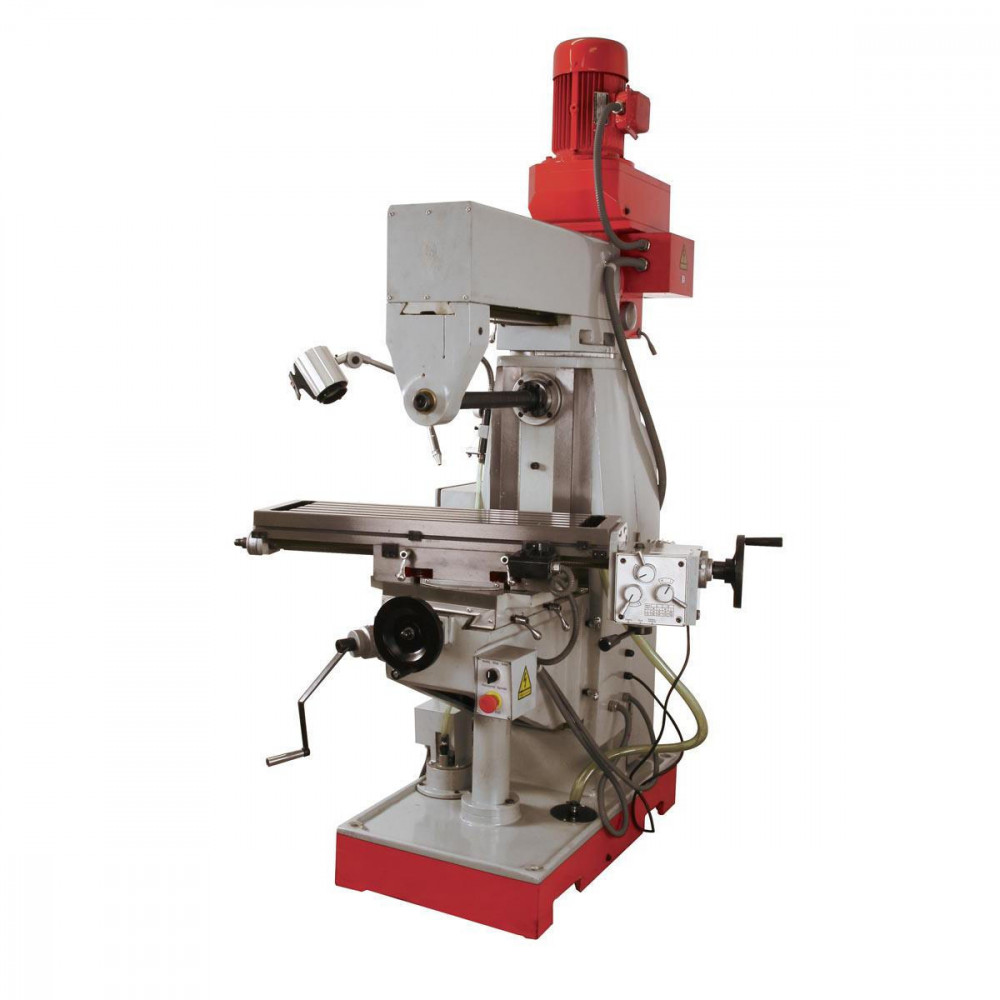

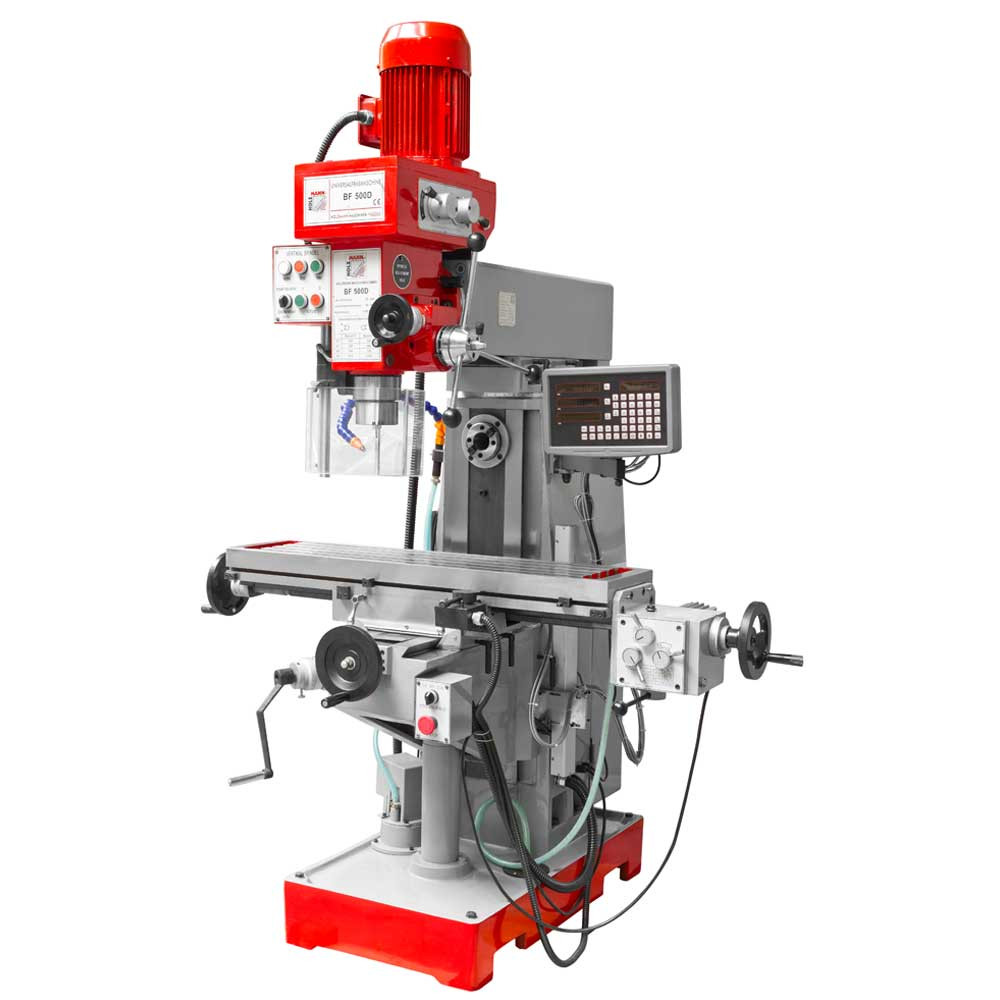

• BF 500DDRO with 3-axis DRO
• heavy and vibration absorbing cast iron machine
• solid and pivotable (+90° -90°) vertical gear driven milling
• head
• Oil bath gear with ground and hardened gear wheels
• CW-CCW run as standard quill downfeed via three spoke lever and precision wheel
• with depth scale
• heavy and large cross table with 14mm T-nuts to fix e.g.
• a vice
• automatic gear driven feeding of X-axis
• automatic and adjustable limit stops of the X-axis.
• swallowtail guides of the table adjustable via V-ledges
• max. tapping size M16
• cooling system and halogen lamp included in delivery
• horizontal milling function
• quick and easy transformation to horizontal function

included in delivery: cooling system, X-axis feed1pcs milling rod 22mm, 1pcs milling rod 27mm, chuck set 8pcs (4,5,6,8,10,14,12,16mm), chuck 1-16mm (B18), adapter 1xMT3 1xMT2 1xB18, professional vice with jaw width of 160mm, halogen lamp
