ED1000GDIG_400V

Nauja prekė

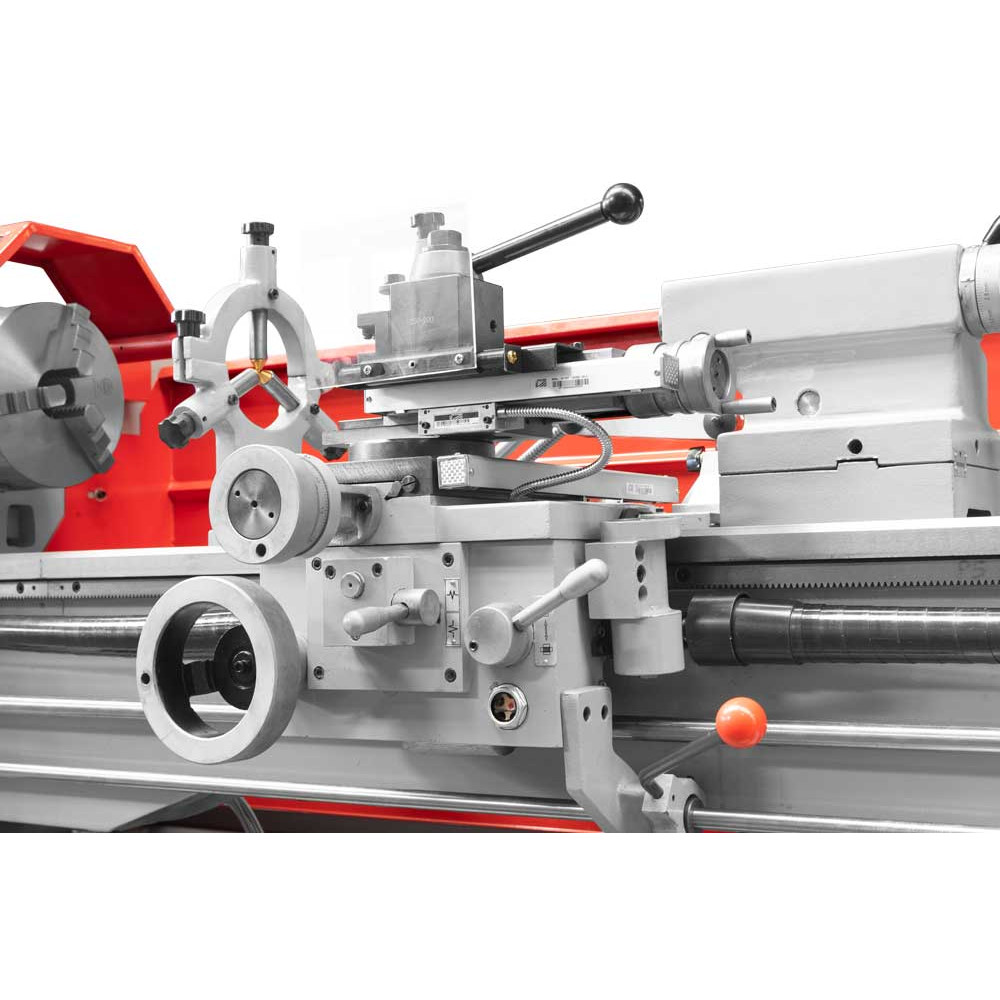

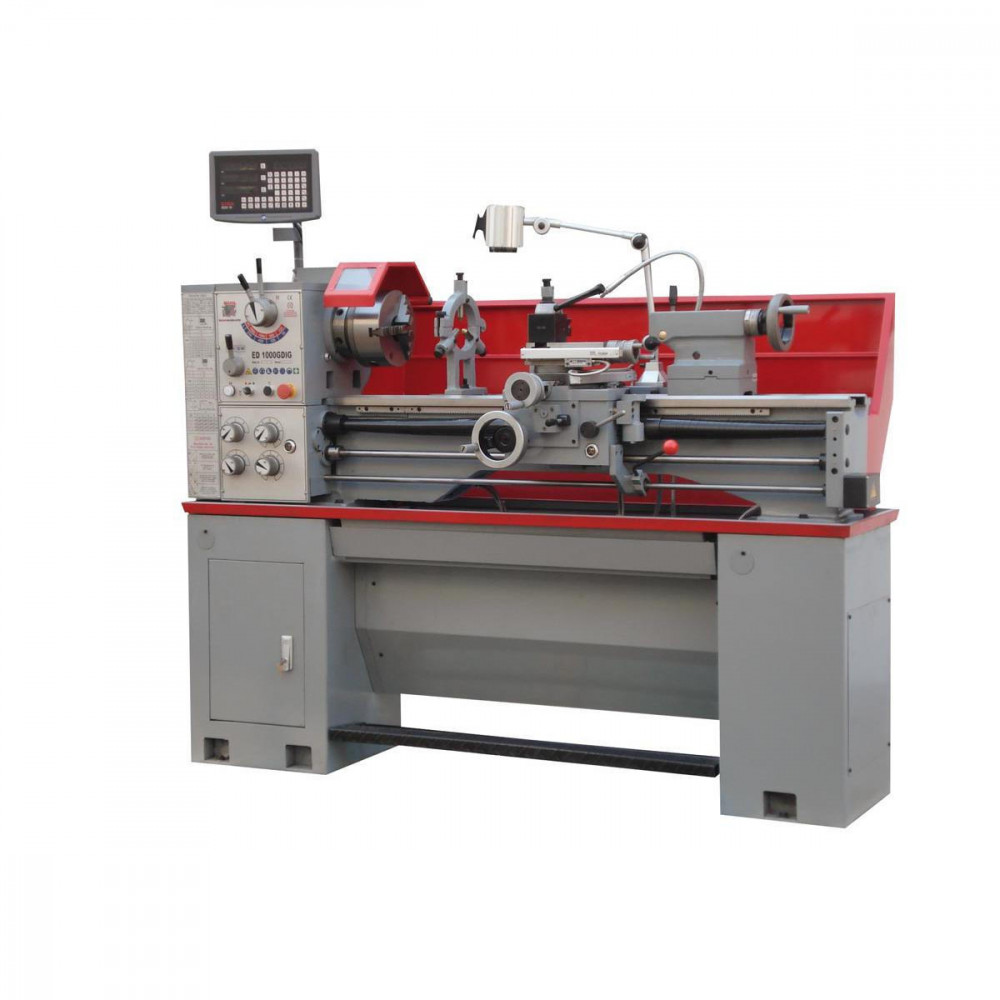

ED1000GDIG_400V Holzmann metalo tekinimo staklės

  • with gear shaft
  • State of the art leadscrew and feed rod turning lathe excelling with especially long lasting value over time and
  • delighting versatility
  • ideal for use in sectors requiring versatility like maintenance and fabrication shops, tool rooms or for training purposes in schools
  • exceptionally wide spindle bore (Ø 52mm) for processing large shaft diameters
  • electromagnetic foot brake ensures maximal working safety and cuts down nonproductive time dramatically
  • induction-hardened and precision ground prismatic bed way guides made of stabilized cast iron, assuring max. accuracy for a lifetime
  • removable bridge enables the machining of workpieces with diameters up to 474mm
  • Precision cut gears and vibration inhibiting cast iron machine bed ensure high turning accuracy
  • Gears and spindles are hardened, ground and running in an oil bath
  • Dynamically balanced main spindle mounted in precision bearings, high spindle centricity (< 0,009mm)
  • easy and quick speed change via gear shaft
  • Camlock D1-5 DIN 55029 spindle nose
  • adjustable (+/- 5mm) tailstock for taper turning
  • All guides conveniently adjustable via V-ledges
  • The tailstock can be adjusted +/- 5mm for taper turning
  • large digital display for easy operation
  • Extensive delivery content: 3-jaw chuck Ø 200mm, 4-jaw independent chuck Ø 200mm, feed cover, face plate Ø 250mm, 2x dead centers MT4, morse taper sleeve MT 6/4, steady rest, follow rest, halogen work lamp, splash guard, cooling device, stand with spindle brake, exchange gear, tools
Aukštis 1.520
Svoris 630
Svoris (bendras) 680
Įtampa 400V
Ilgis 1.940
Plotis 760
Modelis ED1000GDIG_400V
Pavadinimas (anglų k.) metal lathe
EAN numeris 9120039902494
Variklio galia s1 (W) 1500
Variklio galia s6 (W) 2100
Pagrindo plotis (mm) 187
Pagrindo aukštis (mm) 305
