ED1000KDIG_400V

Nauja prekė

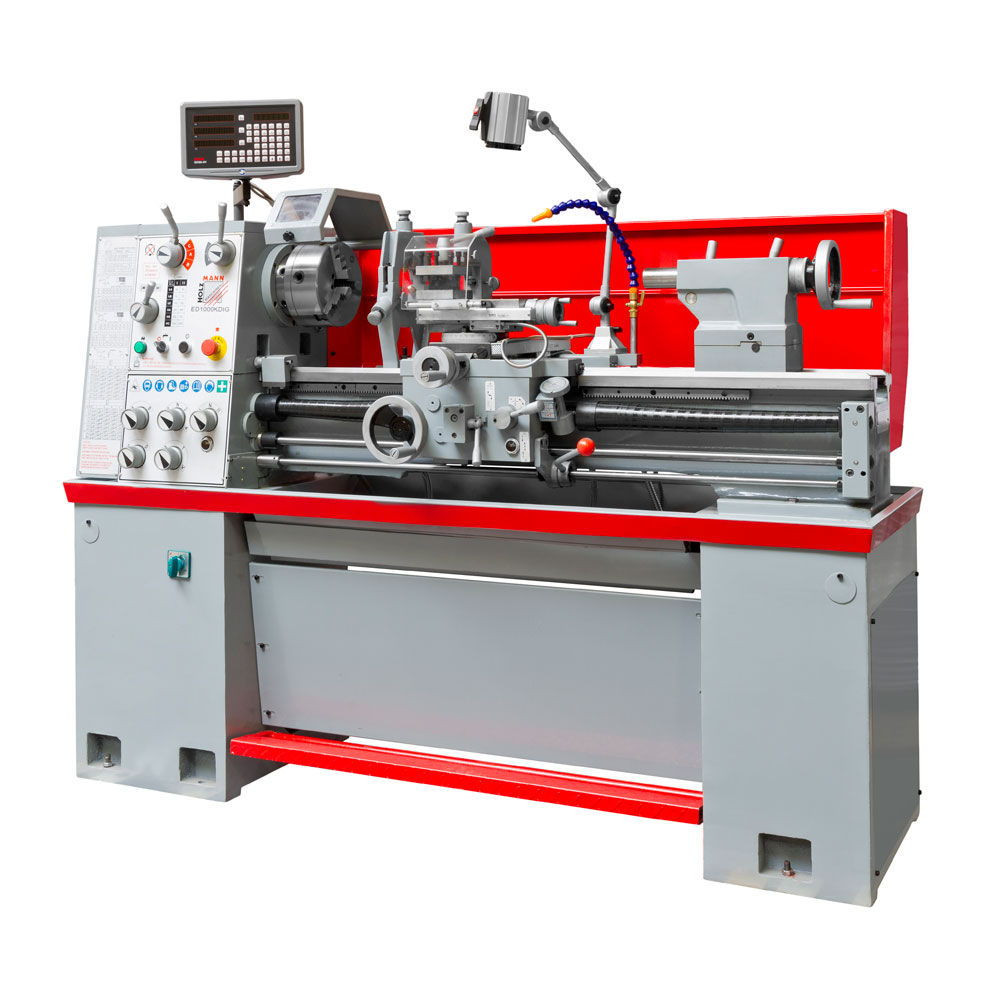

ED1000KDIG_400V Holzmann metalo tekinimo staklės su ekraniuku

  • State of the art leadscrew and feed rod turning lathe excelling with especially long lasting value over time and delighting versatility
  • ideal for use in sectors requiring versatility like maintenance and fabrication shops, tool rooms or for training
  • purposes in schools
  • exceptionally wide spindle bore (Ø 52mm) for processing large shaft diameters
  • electromagnetic foot brake ensures maximal working safety and cuts down nonproductive time dramatically
  • induction-hardened and precision ground prismatic bed way guides made of stabilized cast iron, assuring max. accuracy for a lifetime
  • removable bridge enables the machining of workpieces with diameters up to 505 mm
  • Precision cut gears and vibration inhibiting cast iron machine bed ensure high turning accuracy
  • Gears and spindles are hardened, ground and running in an oil bath
  • Dynamically balanced main spindle mounted in precision bearings, high spindle centricity (< 0,009mm)
  • Camlock D1-5 DIN 55029 spindle nose

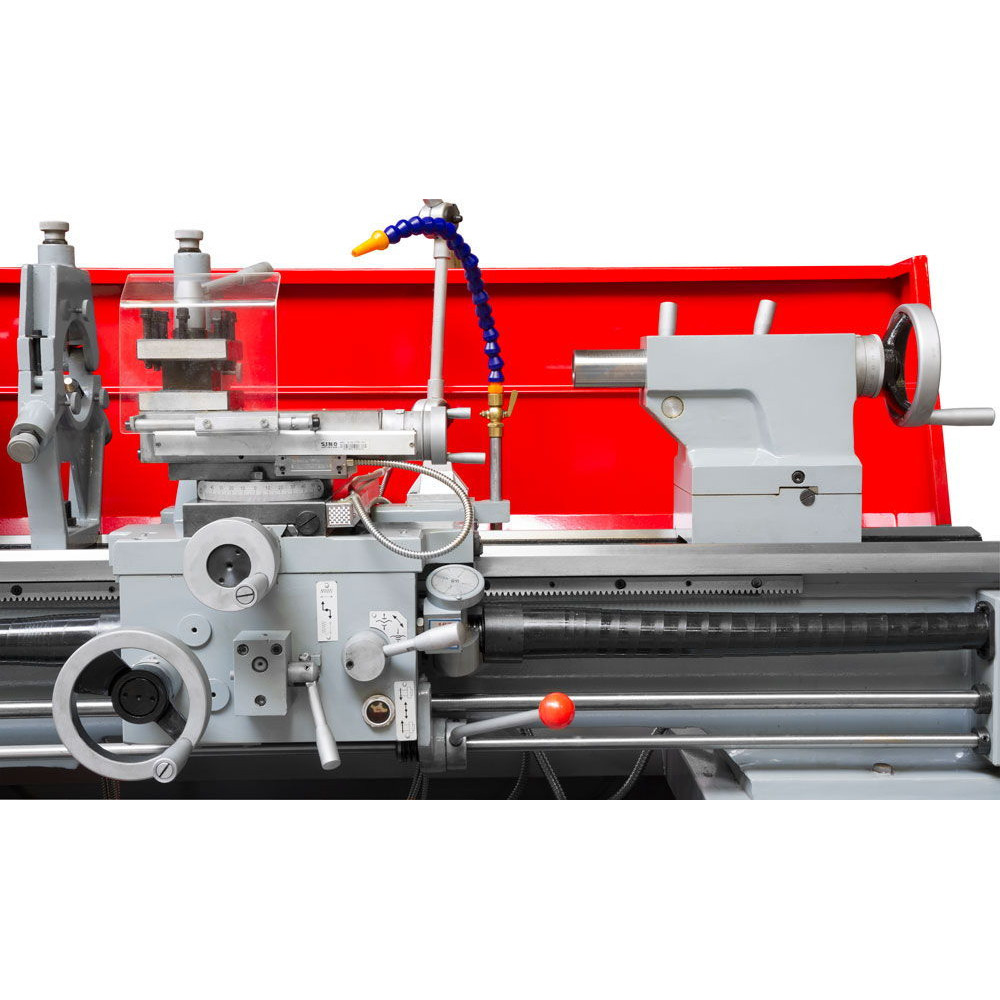

  • adjustable (+/- 5mm) tailstock for taper turning
  • All guides conveniently adjustable via V-ledges
  • 2-step motor as standard

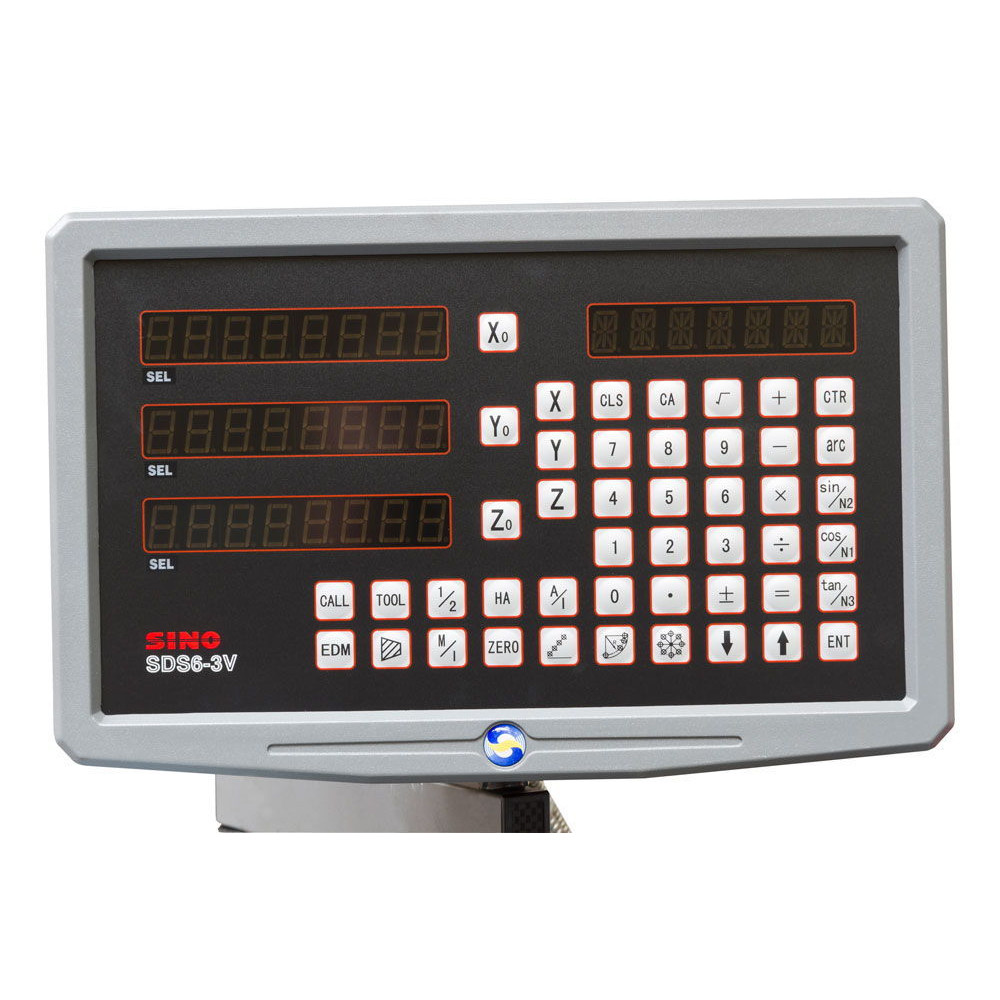

  • with 3-axis DRO

included in delivery: 3-axis DRO, 3-jaw chuck Ø 200mm with exchange jaws, 4-side tool holder, 4-jaw chuck Ø 200mm, face plate Ø 250mm, 2x dead centers, morse taper sleeve MT 6/4, steady rest, follow rest, halogen work lamp, splash guard, coolant device, grey cast stand, threading, change gears, tools

Aukštis 1.600
Svoris 850
Svoris (bendras) 900
Įtampa 400V
Ilgis 1.950
Plotis 750
Modelis ED1000KDIG_400V
Pavadinimas (anglų k.) metal lathe 3-axis DRO
EAN numeris 9120039902548
Variklio galia s1 (W) 2000
Variklio galia s6 (W) 2400
